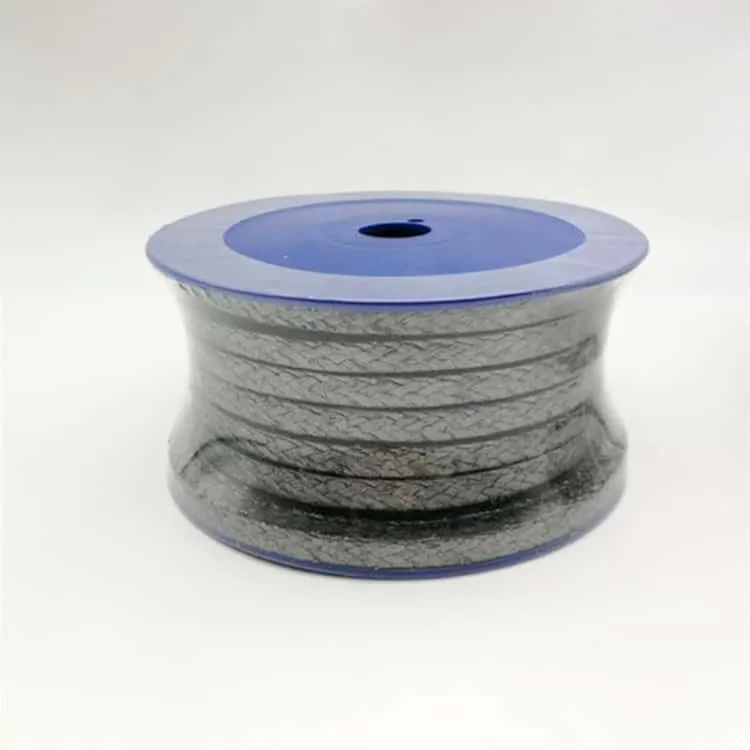

Graphite Spun Aramid Fiber Packing

Model: WT-P303

It is mixed high quality braided packing, made from aramid fiber yarns impregnated with graphite. It can prevent from gap extrusion under high temperature and pressure. It can be used to seal a long life cycle of high pressure industrial pump.

Introduction

Application

It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids. For hot water applications it can be used uncooled up to 160℃. It can be used as stand-alone packing also combined with others as anti-extrusion ring.


Parameter

Temperature Range-150 up to +280℃
ProcessRotating25 bar
Reciprocating150 bar
Static200 bar
Shaft Speed15m/s
PH2~12
DensityAppr. 1.5g/cm³
