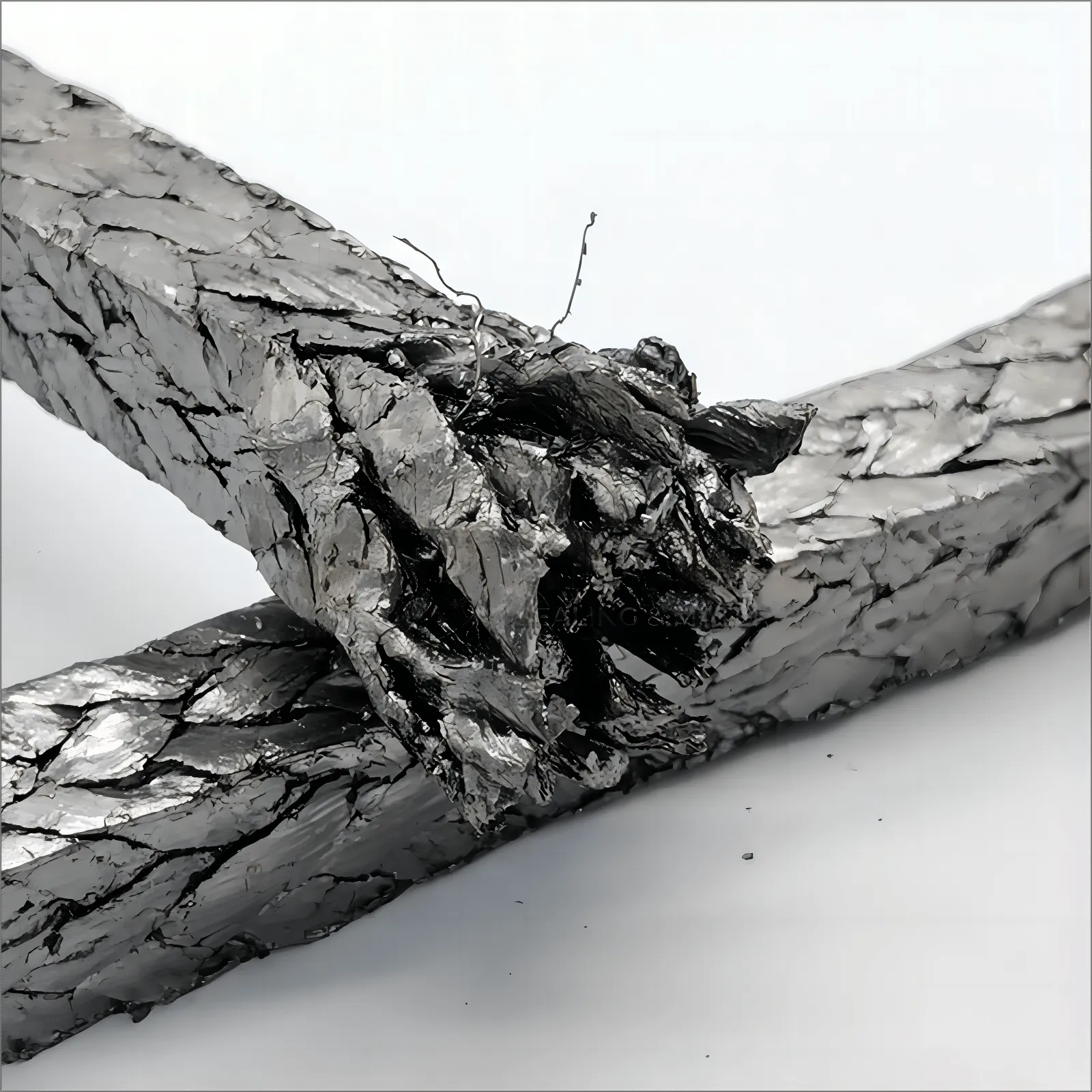

Graphite Packing Reinforced with Metal Wire

Model: WT-P401

Braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire. It retains all the inherent benefits of pure graphite packing, good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength, Normal for valve with high pressure. Other metal materials, nickel, stainless steel etc. on request.

Introduction

Application


It is a multi-service packing capable of a wide variety of uses throughout a plant. It is particularly suited for use in high temperature, high pressure steam service. In addition, it can also handle most chemicals, acids and alkalis. It is excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.


Parameter

Material100% Expanded Graphite and Metal Wire
PressureRotating30 bar
Reciprocating100 bar
Static280 bar
Shaft Speed12 m/s
Density1.4-1.5g/cm³
Temperature(Atmosphere)-220~500℃
Temperature(Steam)+550℃
PH Range0~14
