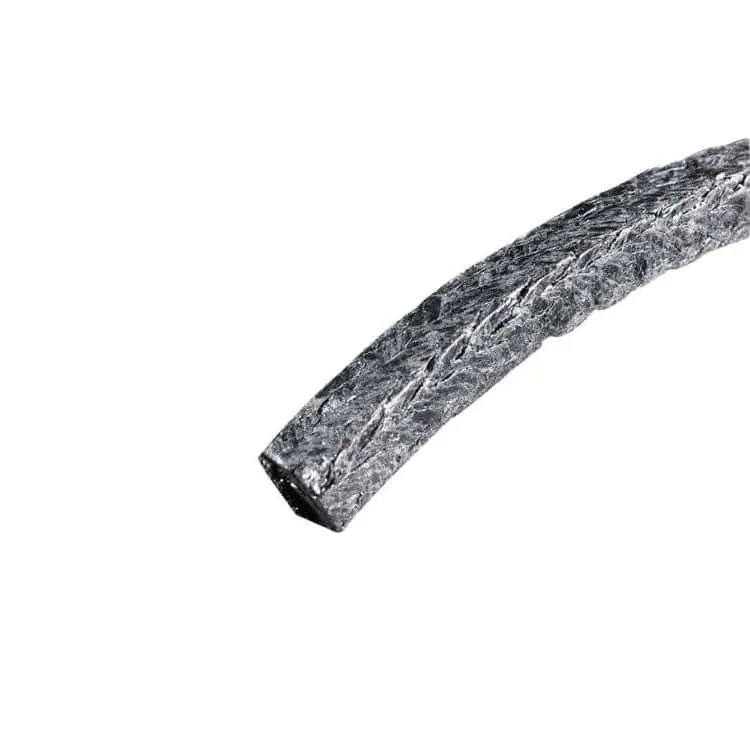

Jacketed Graphite Packing braided from graphite yarns with metal alloy and glass fiber casing like the socks outside. Used in any steam valves applications.
Jacketed Graphite Packing Braided from graphite yarn with metal alloy wire and glass fiber casing like shell outside. All-metal coated structures greatly increased the erosion resistance of packing, make packing more compact, more robust, long life. It is competent to ultra-high temperature, high pressure condition of the steam value sealing.
>It is the ideal choice for high pressure, high temperature steam valves service.
Material | 100% Expanded Graphite Yarn and Metal Socks | |
---|---|---|
Pressure | Rotating | |
Reciprocating | ||
Valve | 55 Mpa | |
Shaft Speed | 20 m/s | |
Density | 1.75g/cm³ | |
Temperature(Atmosphere) | -200~+555℃ | |
Temperature(Steam) | -200~+850℃ | |
PH Range | 0~14 |
