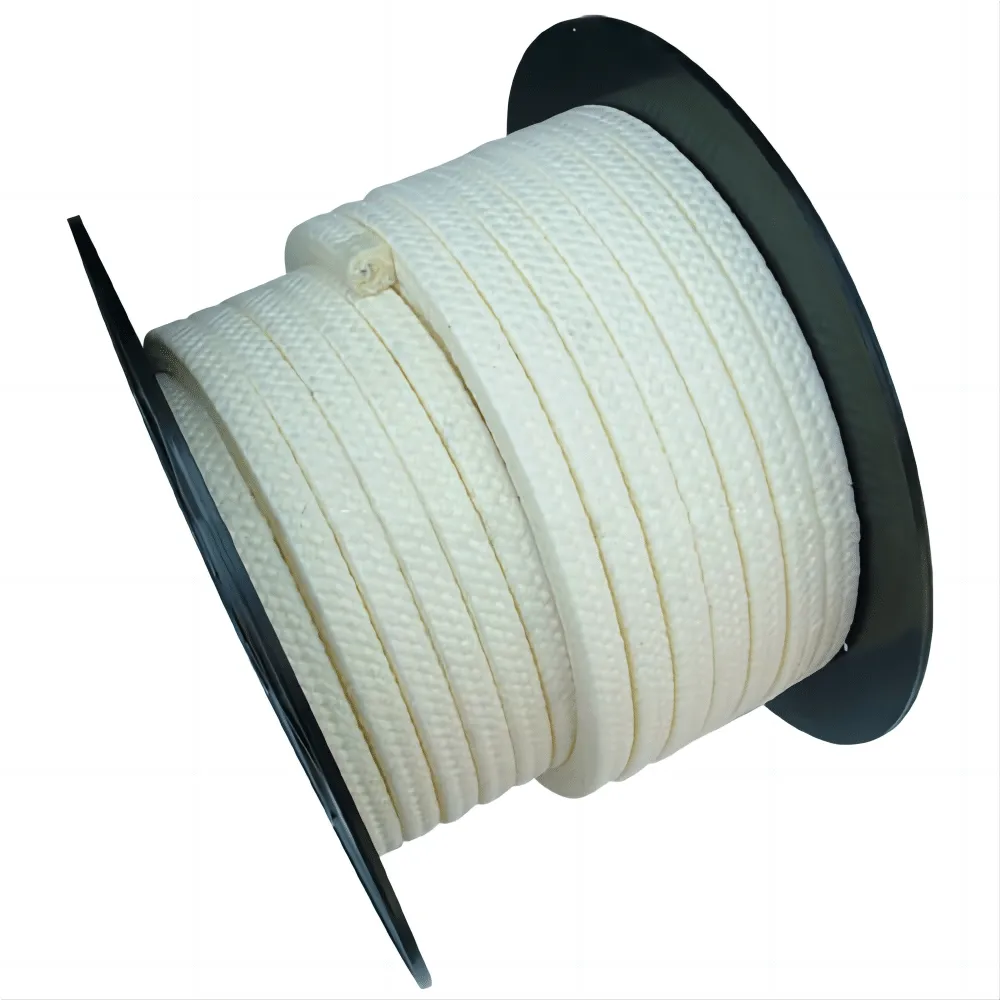

PAN Fiber Packing

Model: WT-P603

PAN Fiber Packing, Braided from high strength PAN synthetic fiber pre-impregnated with PTFE and special lubrication, and re-impregnated during square braiding. It has excellent properties of sealing, lubricating and resistance to chemicals.

Introduction

Application


Excellent multi-service for a wide variety of uses throughout a plant. Used in pumps and valves, and can handle most chemicals except strong acid, strong alkali and strong oxidizer. Especially for the condition of middle temp. high-pressure,high-speed,and where contamination is not permitted.


Parameter

Temperature Range-50 up to +260℃ atmosphere
ProcessRotating20 bar
Reciprocating80 bar
Static100 bar
Shaft Speed20m/s in rotary
Density1.3g/cm³
PH Range1~13
