Glass Fiber Packing with Graphite lmpregnation

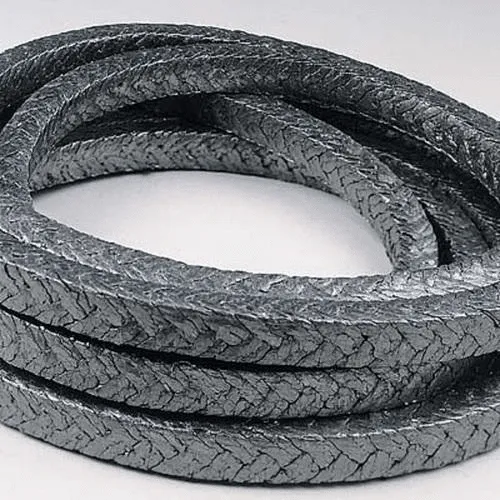

Glass Fiber Packing with Graphite impregnation, Square braided from E-glass fiber impregnated with graphite. Normal for valves. 262EG is fiberglass packing reinforced with SS or Nickel wire and lubricated by graphite

Introduction

Application


As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc. Suited for chemically neutral and resistant to water, steam, hot air, oils and so on. can be used for pumps & valves.


Prime Features


>Low maintenance, easy to control

>Excellent capabilities of high strength and high temperature resistance

>Economical packing

Parameter

PressureRotating20 bar
Reciprocating40 bar
Static80 bar
Shaft Speed10m/s
Density0.75-1.25g/cm³
Temperature-100~+600°C
PH5-9
