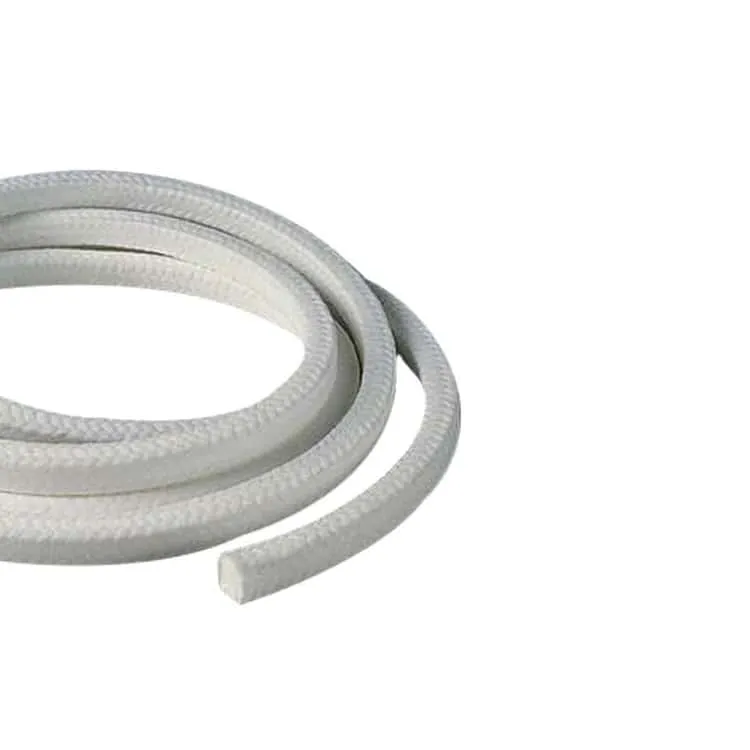

PTFE Filament Packing

PTFE Filament Packing

Model: WT-P103

PTFE Filament Packing made from synthetic composite PTFE yarn, the yarn is sintered, highly stretched. The packing is then re-impregnated with mix of PTFE emulsion during braiding operation. Good resistance to compression and to extrusion, high structural and cross-sectional density.

Introduction

Application

>Universal packing suitable for valves, pumps and agitators in most mediums

>Especially suited for high pressure valves, plunger pumps, agitators, mixer etc. And where contamination is not permitted.

Most useful in slower shaft speed applications

Check and needle valve stems

Safety injection system valves

Chemical applications

Plungers, Pumps, Oil., etc


Parameter

Material100% Filament PTFE yarn
PressureRotating20 bar
Reciprocating150 bar
Static250 bar
Shaft Speed10 m/s
Density1.75g/cm³
Temperature-150~260℃
PH Range0~14
