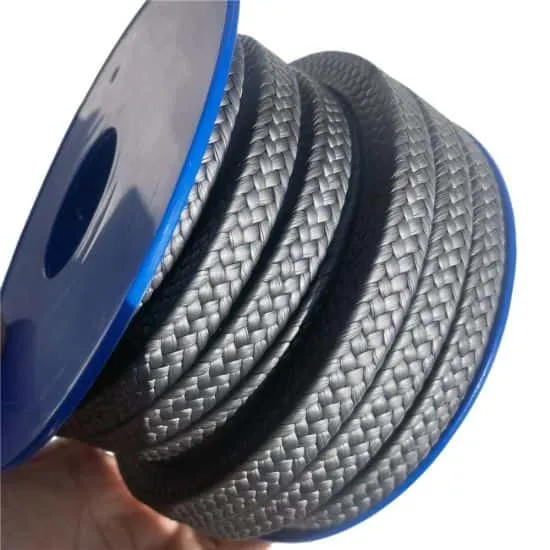

Pure Graphite PTFE Packing with Oil

Model: WT-P202

Packing made of 100% gPTFE yarns, and re-impregnated with a silicone lubricant with density about 1.6g/cm³ . It is also economical gPTFE packing.

Introduction

Application

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.


Parameter

MaterialPure Graphite PTFE Packing with Oil
PressureRotating15 bar
Reciprocating100 bar
Static200 bar
Shaft Speed12 m/s
Density1.65g/cm³
Temperature-150~+280°C
PH Range0~14
