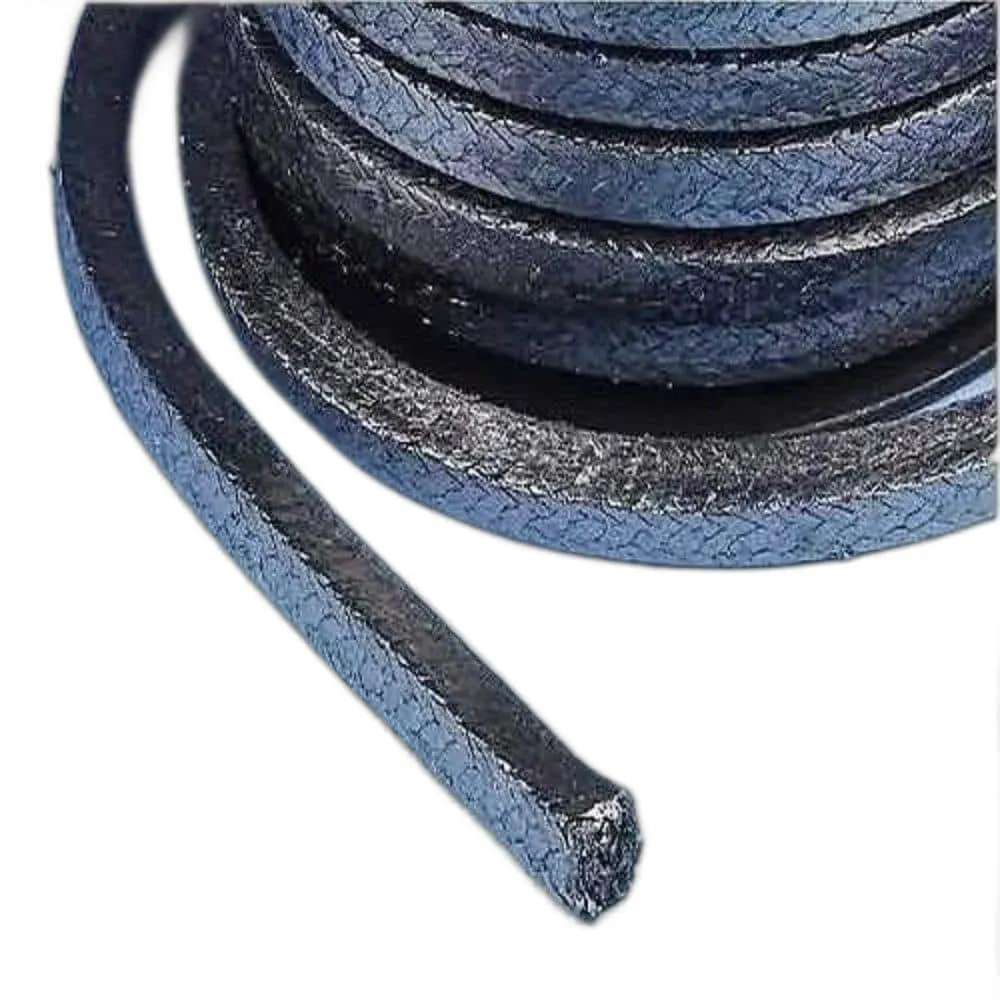

Carbonized Fiber Packing with Graphite

Model: WT-P502

Carbon fiber packing impregnated in graphite is diagonally braided from pure carbon fibres, with a special graphite impregnation and a silicone-free lubricant. It lacks the usual stiffness of pure carbon packings, it has superb thermal conductivity and a very low coefficient of friction. Contrary to many packings made from synthetic fibres, it does not shrink, even if subjected to high temperature: no shrinkage at temperatures of up to 300°C thanks to its outstanding dimensional stability. Because of the excellent chemical and mechanical properties of carbon, this packing is resistant against most aggressive and abrasive media.

Introduction

Application


Multi-purpose packing usable for a very wide range of applications. Particularly well suited for all demanding dynamic applications, like boiler-feed-pumps, mixers, agitators, refiners, etc., but also for static applications like valves, autoclaves, reactors, etc., in a wide variety of industries like power stations, pulp and paper, pharmaceutical, the chemical and petrochemical industry and many more.


Parameter

Temperature Range-50 up to +280 oC atmosphere
ProcessRotating20 bar
Reciprocating100 bar
Static200 bar
Shaft Speed20m/s in rotary
PH2~12
Density1.2~1.4g/cm3
