Ring Joint Gasket

Catalog

Model: WT-RJ640

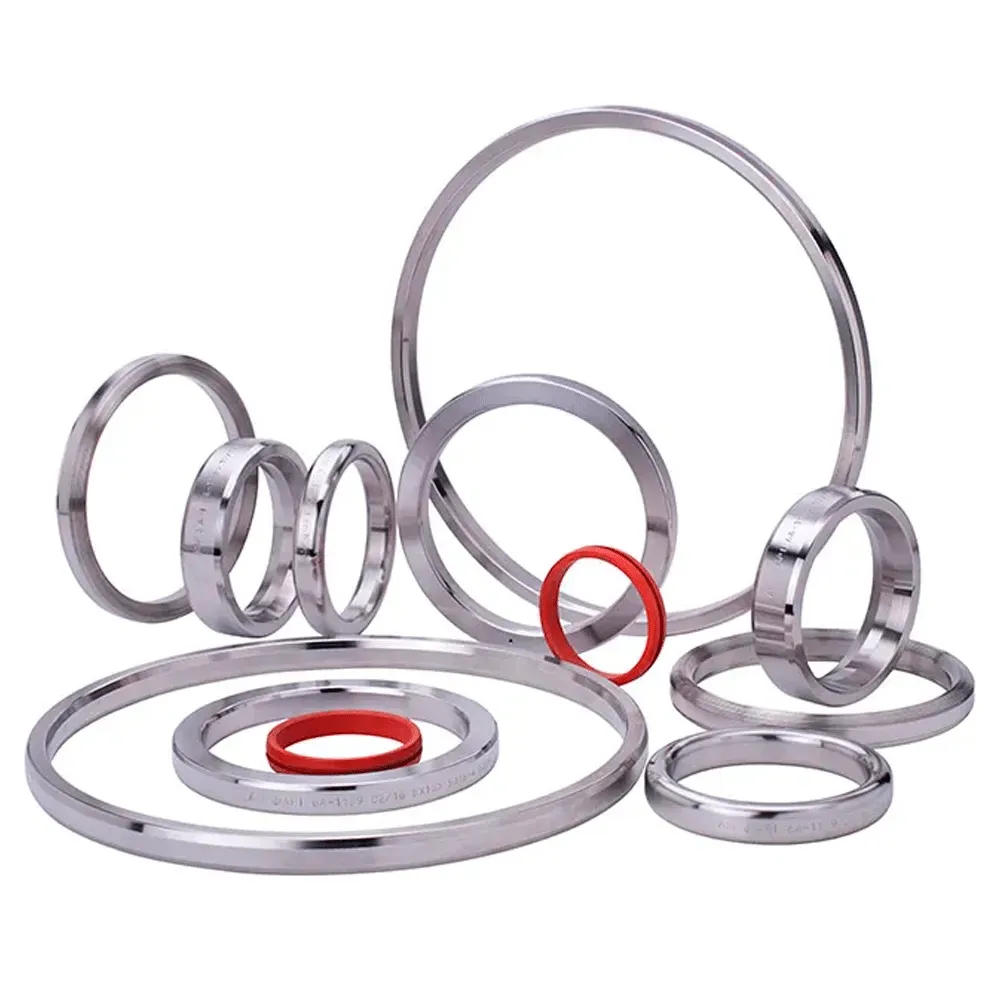

WT-RJ640 is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.

Inquiry now Contact us

Introduction

Application

Ring joint gasket are used in connection with RTJ flange, generates a strong seal between two mating flanges. When the flanges are fixed by bolts, ring joint gasket is squeezed into the groove of the flange, forming a tight seal between the mating flanges. In order to avoid destruction of the flanges, the material of the ring joint gaskets must be softer than the material of the flanges.

Parameter

Specification

640 PL Plain type RJG

640 OV Oval type RJG

640 OC Octagonal type RJG

640 RX RX type RJG

640 BX BX type RJG

640 S Special type RJG

Material	Code Sample	Hardness(HB)	T(¡æ)
Soft Iron	R23 SI	90	530
Carbon Steel	R23 CS	120	530
304(L)¡¢321¡¢316(L)	R23 S304	160	750
5Cr1/2Mo	R23 F5	130	500
Copper for 640PL		50	400
Aluminium for 640PL		50	300

DIMENSIONS

Standards for Ring Joints Gaskets used with flanges
RJG Style	RJG standard	Flange standard
R	ASME B 16.20	ANSI B 16.5
R	API 6A	ANSI B 16.47 Series A
RX	ASME B 16.20	API 6B
RX	API 6A	API 6B
BX	API 6A	API 6BX

Can be ordered according to the detailed drawing
