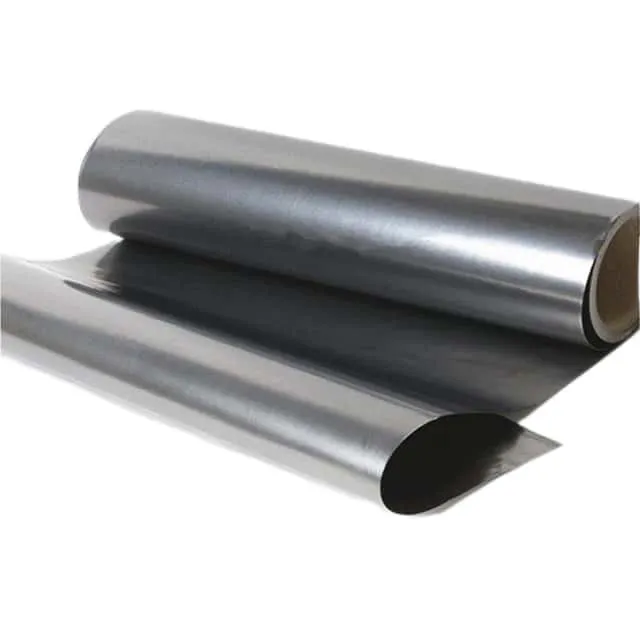

Flexible graphite sheet and rolls is made from high purity graphite, it is used can be expanded graphite particles formed by the high temperature expansion of repression, it retains the high temperature crystalline flake graphite, corrosion resistant, self lubricating, etc.
· Suitable for making gaskets of cylinders for are compressors, internal combustion engines and packing for different kinds of piping, and flanges.
· The condition of high pressure and high temperature.
· Long life and less maintenance.
· Replacement for asbestos, new more applications are being indentified daily.
· Excellent comprehensive properties.
· Good compressibility and resilience, small stress relaxation, fine compensation function.
· TEMPERATURE.
· -240~+500°C under oxidizing environment.
· -240~+3500°C under non-oxidizing environment.
· PH: 0~14.
Item | Sheet | Roll |
---|---|---|
Density g/cm³ | 1.0 | 1.0 |
Length | 1000mm 1500mm | 30-100m |
Width mm | 1000mm 1500mm | 1000-1500mm |
Thickness mm | 0.5-3.0 | 0.2-1.1 |
