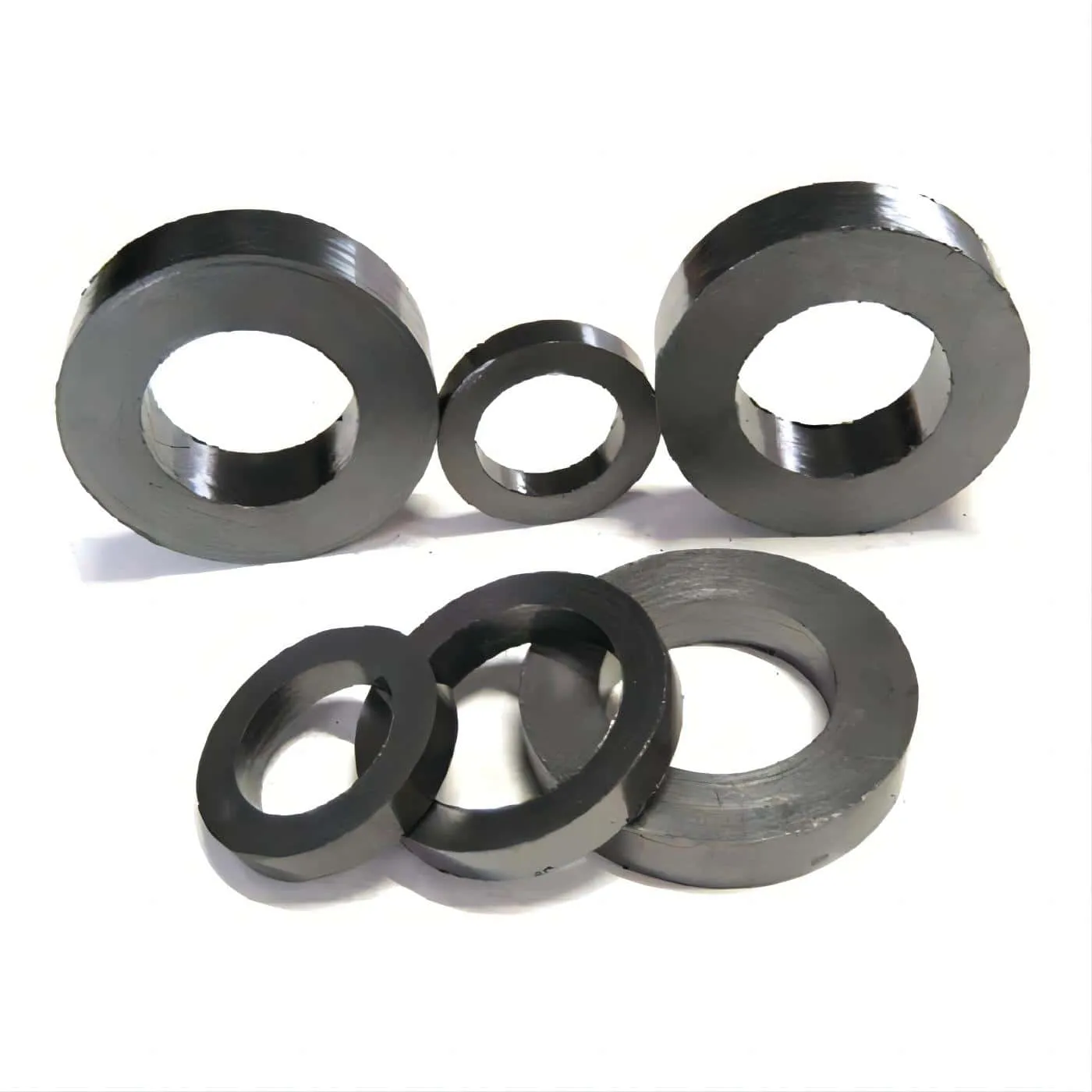

Die Formed Graphite Ring

Model: WT-406R

Made of low-sulphur expanded graphite without any fillers or binders. They are compressed in precise moulding tools to the required density. Due to the high purity of the material (>98%), no special corrosion protection is required. In general, it has square section and also has V-shaped and wedge-shaped section, the rear two kinds style are suitable for high pressure sealing.

Introduction

Application


It has all properties of expanded graphite, can bear violent alteration of temperature and pressure. It is ideal packing for valves and static seal in almost all applications. Can be used as stand-alone packing or in combination high carbon fiber anti-extrusion packing rings, except when stems are severely damaged.


Parameter

Material100% Expanded Graphite
PressureRotating10 bar
Reciprocating50 bar
Static800 bar
Shaft Speed10 m/s
Density1.2-1.5g/cm³
Temperature(Atmosphere)-220~555℃
Temperature(Non-oxidizing)-200~2850℃
PH Range0~14
