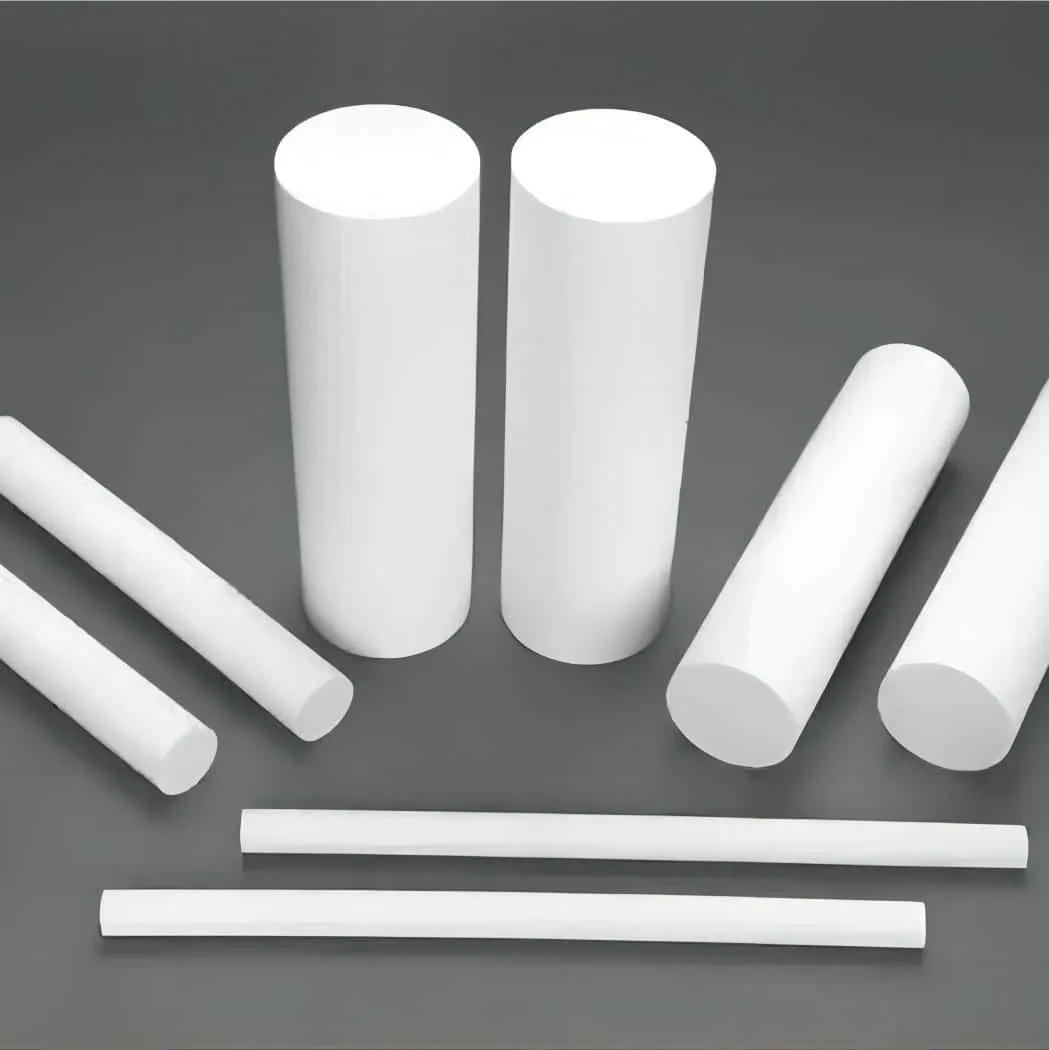

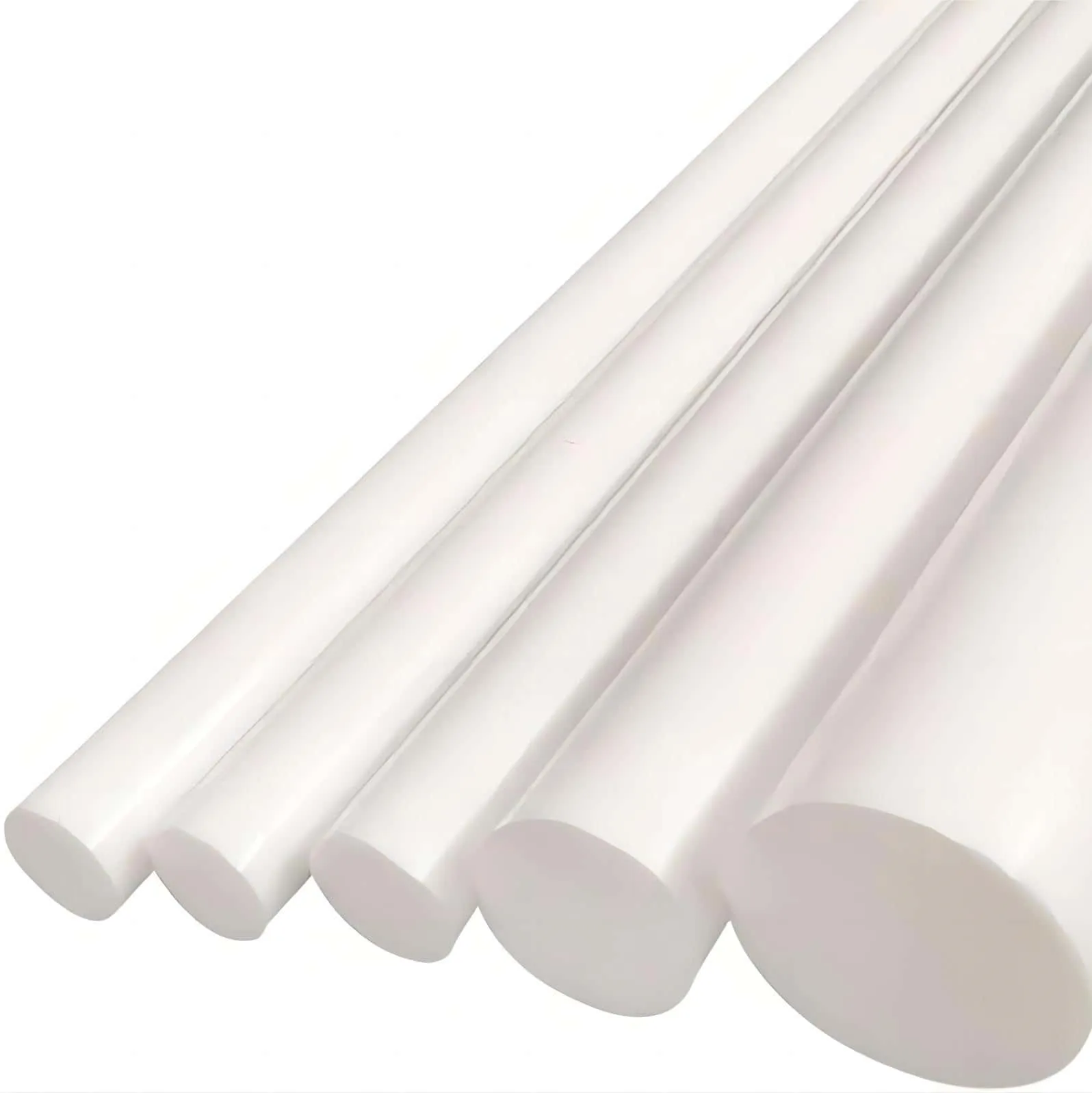

PTFE Rod

Model: WT-210

PTFE Rod manufactured with 100% virgin PTFE resin.PTFE rod has two types,extruded PTFE rod and moulded PTFE rod.The diameter from 4 to 250mm is extruded PTFE rod and the diameter of moulded PTFE rod is 300 to 500mm.

Introduction

Application


PTFE rod has the characteristics of high chemical resistance,high insulation,non-stick ,low friction and long life.It is used by machine parts such as, connectors, terminals and other electrical parts.


Parameter

ModelWT-210
Density2.1 – 2.3 g/cm³
Tensile Strength15 MPa
Elongation at Break150%
Temperature-180℃ - +260℃
Melting Point327℃
ColourWhite
Dielectric Strength10 Kv/mm
