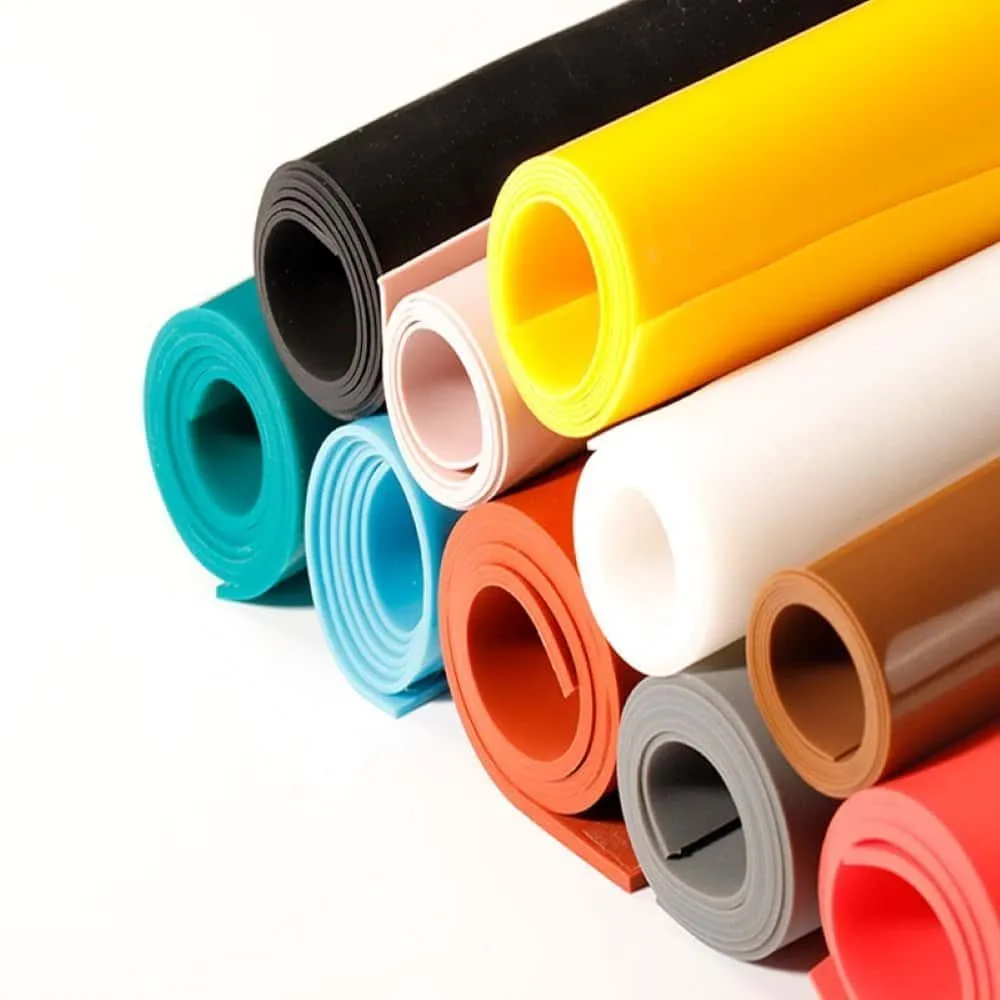

Silicone Rubber Sheet

Catalog

Silicone rubber is physiologically inert material and well known for its excellent temperature resistance, sealing and flexibility. Zenith Rubber manufactures various range of quality Silicon rubber sheets at competitive price. Silicone has excellent resistance to heat (dry air), at +225°C intermittent. It remains flexible at low temperatures of -70°C and it is also resistant to ultra-violent light, Ozone and weathering.

Inquiry now Contact us

Introduction

Application

Silicone rubber sheets are used in a wide range of industries and applications, including aerospace, automotive, electrical, pharmaceutical, food processing, Furniture and industrial manufacturing. They are employed for gaskets, seals, vibration dampening pads, insulation, cushioning, thermal management etc.

Parameter

SILICONE RUBBER SHEET
Code	Colour	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation	Finish Type
Code	Colour	Gm/cm³	SHORE A	Kg/cm²(min)	% (min)	Finish Type
SI40120	Red, White, Translucent	1.2	43	60	250	Smooth/fabric
SI50120	Red, White, Translucent, Blue, Black	1.2	50	60	250	Smooth/fabric
SI60120	Red, White, Translucent, Blue, Black	1.2	60	60	250	Smooth/fabric
SI65130	Red, White, Translucent	1.3	65	60	250	Smooth/fabric
SI70130	Red, White, Translucent	1.3	70	60	250	Smooth/fabric
SI75120	Red, White, Translucent, Blue, Black	1.2	75	80	250	Smooth/fabric
HIGH TEAR RANGE
SI60120 HT	Translucent	1.2	60	80	300	Smooth/Fabric
SI60115 HT	Translucent	1.15	60	80	550	Smooth/Fabric

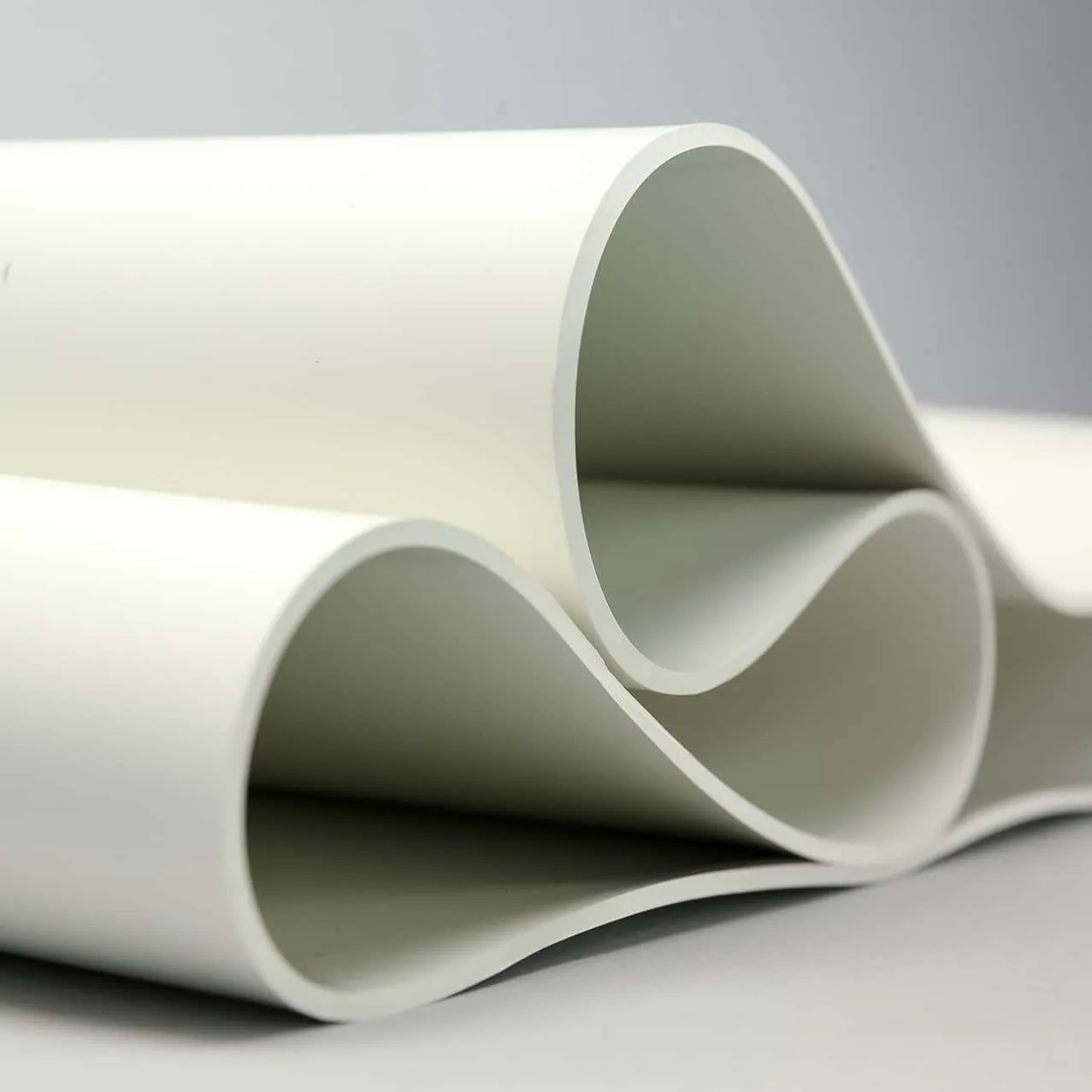

SILICONE RUBBER SHEETS - FOOD GRADE
Code	Colour	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation
Code	Colour	Gm/cm³	SHORE A	Kg/cm²(min)	% (min)
SI60120 FG	Offwhite, Blue, Red	1.2	60	60	250
Standard Length	10 Mtr	33 Ft	11 Yard
Standard Width	1.2/1.4/1.5 Mtr	4/4.6/4.92 Ft	1.33/1.53/1.64 Yard
