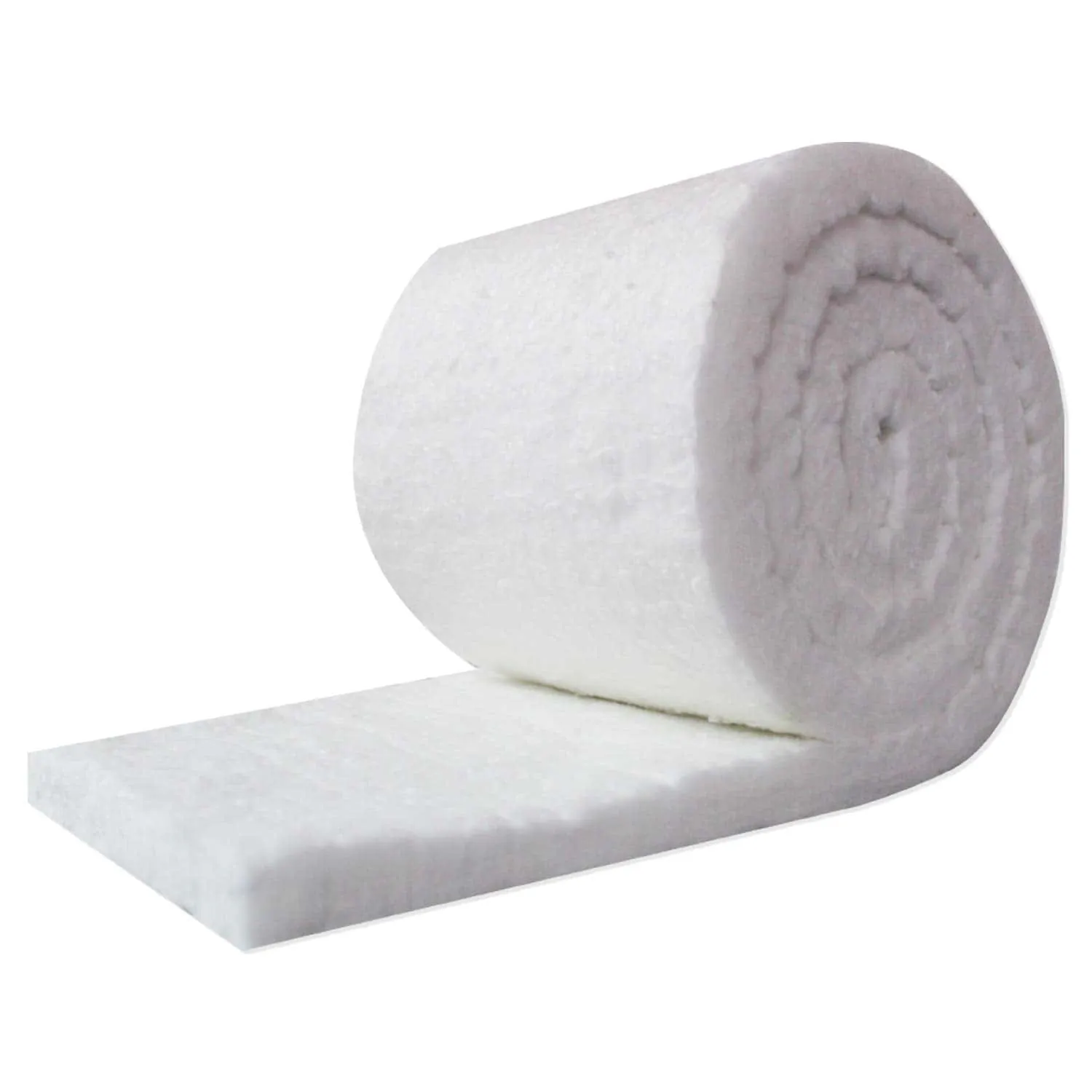

Ceramic Fiber Blanket is a new kind fire-resistant heat insulation material with white colour. Without any bonding agent, good tensile strength, tenacity and fiber structure can be kept while using under the normal and oxidation condition.
· Heat insulation for back lining of high temperature industrial furnace;
· Heat surface lining materials for porcelain furnace, heat treatment furnace of mechanical and metallurgy and other industrial furnaces.
· The thermal capacity and thermal conductivity are lower than similar products;
· The fiber diameter is uniform, and the slag ball content is lower in products with the same density;
· Stable chemical performance without pulverization;
· The same body density product hashigher tensile strength;
· High flatness, cutting construction without burrs;
· Good thermal shock resistance and long service life;
Item | COM | ST | HP | HAS | HZ | |
---|---|---|---|---|---|---|
Categorize the Temp ℃ | 1100 | 1260 | 1260 | 1360 | 1430 | |
Working Temp ℃ | <1000 | 1050 | 1100 | 1200 | 1350 | |
Colour | White | Pure | Pure | Pure | Pure | |
Physical volume density kg/m³ | 96/128 | 96/128 | 96/128 | 128/160 | 128/160 | |
Permanent line constringency (%) 24h, density 128kg/m³ . | -41000℃ | -31000℃ | -31100℃ | -31250℃ | -31350℃ | |
Each temperature descend transmit heat the coefficient (w/m k) density: 128kg/m³ | 0.09(400℃) | 0.09(400℃) | 0.09(400℃) | 0.12(600℃) | 0.16(800℃) | |
0.16(800℃) | 0.16(800℃) | 0.16(800℃) | 0.20(1000℃) | 0.20(1000℃) | ||
0.20(1000℃) | ||||||
The anti- pulls the strength (Mpa) Physical volume density 128g/m³ | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
Chemical composition (%) | AL₂O₃ | 40-44 | 45-46 | 47-49 | 52-55 | 39-40 |
AL₂O₃+SIO₂ | 95-96 | 96-97 | 98-99 | 99 | / | |
AL2O₃+SI0₂+ZRO₂ | / | / | / | / | 99 | |
ZRO₂ | / | / | / | / | 15-17 | |
FE₂O₃ | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
NA₂O+K₂O | <0.5 | <0.5 | 0.2 | 0.2 | 0.2 | |
Size (mm) | Common specification 7200*610*10-50, ather made acoding to customer's requirments |
