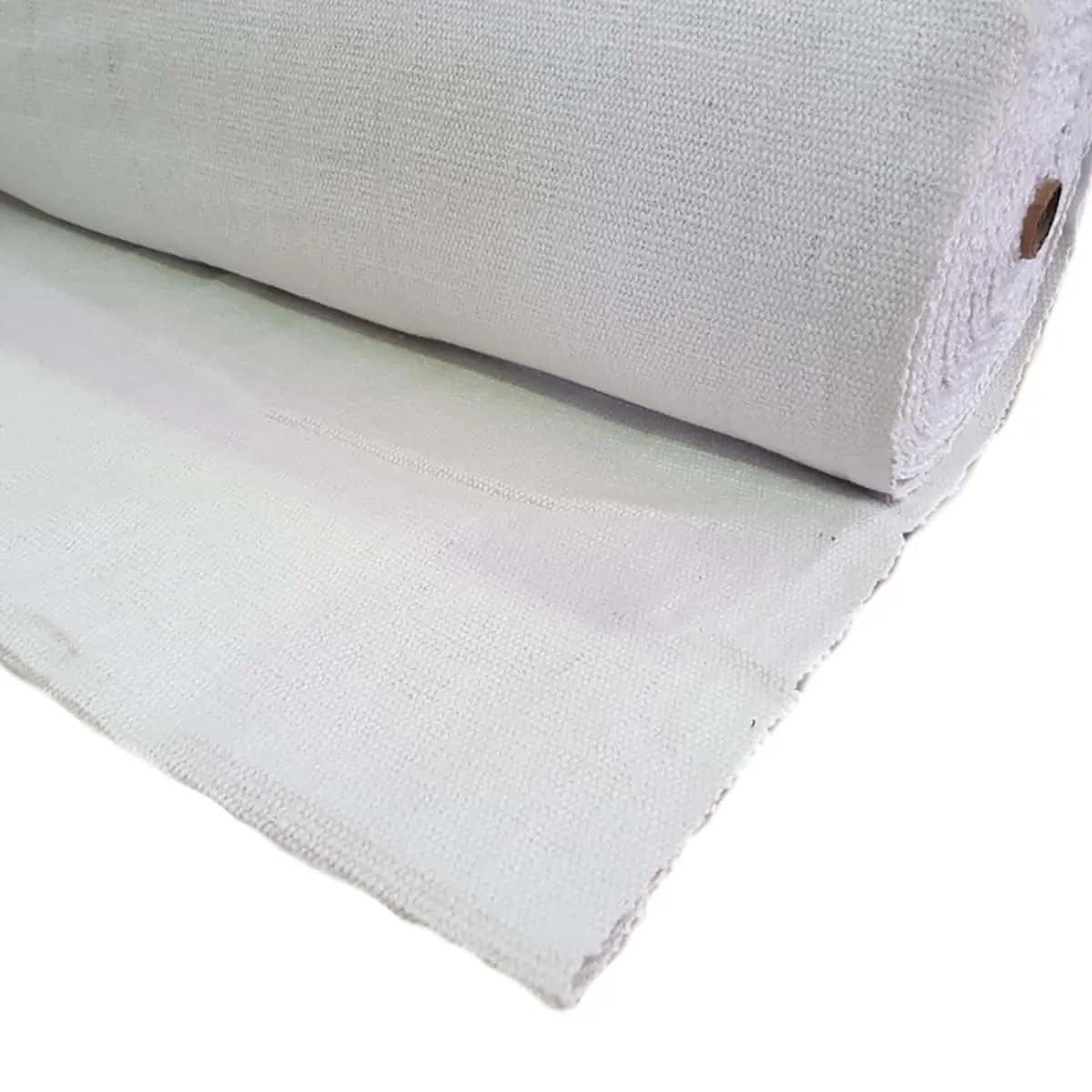

Ceramic Fiber Cloth

Model: WT-CF105

Ceramic Fiber Cloth is a woven fabric made from high quality alumina silica fiber and especially mechanically needled for increased tensile strength and surface integrity in form of ceramic fiber yarn. It can be used for high temperature applications up to 2300 F.

Introduction

Application


·  Furnace curtains.

·  Protection against high temperature.

·  High temperature electrical insulation.

·  Cable and fuel line protection.

·  Welding curtains and blankets.

·  Fire protection.

·  Insulation of industrial chimney.


Features


·  Good compression strength.

·  Non-toxicity, environmental protection.

·  Low thermal conductivity and low thermal capacity.

·  Good antacid oil resistance and water vapor resistance.

Parameter

Temperature(°C)1260
Product NameGlass-fiber Reinforced Ceramic
Fiber Cloth with wire
Stainless-steel Reinforced
Ceramic Fiber Cloth with wire
Basic MaterialCeramic
Fiber/Glass fiber Reinforcement
Ceramic Fiber/Staineless-
steel Reinforcement
Density(kg/m³)500
Long-term Operation T emp(°C)6501050
Water Content(%)≤2
Organic Content(%)≤15
Heat Conductivity(W/m° K)500°C: 0.101
650°C: 0.105
1000°C: 0.176
PackingWoven Bag
Thickness1.5-6mm
Width300 - 1500mm
Length10-30m
Diameter of Fiber3-5um
