Viton Rubber is a brand of FKM. Fluoroelastomer or FKM is a class of synthetic rubber designed for very high temperature operation. FKM is highly recommended for most solvents, Hydrocarbons, aliphatic, aromatic and chlorinated chemicals, resistance to acids and alkalis including oxidants, high temperature stability, excellent sealing properties, low compression set and resistance to aging.

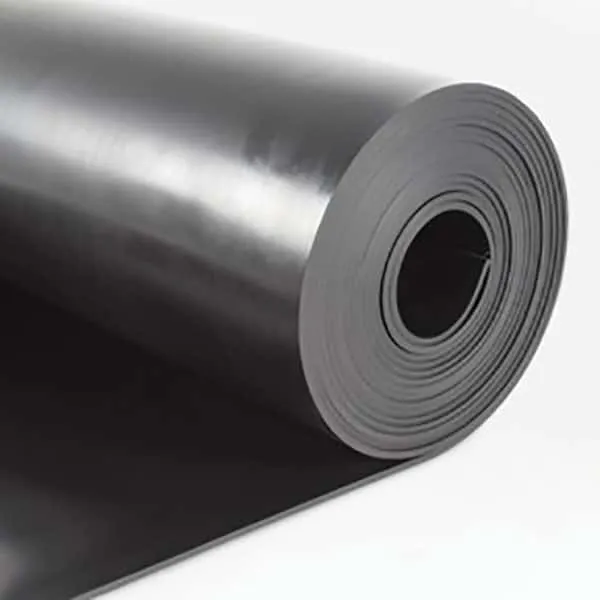

FKM rubber sheet is widely used as gaskets, O-rings, seals, fuel system components, Lining in various industries like Automotive, Oil& Gas, defence, Heavy Machinery, Aerospace etc The polymer has high resistance to heat with a temperature range of -40° C to + 250° C.
| FKM RUBBER SHEETS | ||||||
|---|---|---|---|---|---|---|
| Code | Colour | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Finish Type |
| Gm/cm³ | SHORE A | Kg/cm²(min) | % (min) | |||
| FPG72190 | Black, Blue | 1.95 | 72 | 50 | 200 | Smooth/Fabric |
| FKM 75203 ECO | Black, Blue | 2.03 | 75 | 40 | 200 | Smooth/Fabric |
| FKM RUBBER SHEETS - FOOD GRADE | ||||||
| Code | Colour | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Finish Type |
| Gm/cm³ | SHORE A | Kg/cm²(min) | % (min) | |||
| FPM 65195 FG | White | 1.95 | 65 | 50 | 250 | Smooth/Fabric |
| FKM RUBBER SHEETS - FOOD GRADE | ||||||
| Code | Colour | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Finish Type |
| Gm/cm³ | SHORE A | Kg/cm²(min) | % (min) | |||
| Viton 70190 | Black | 1.95 | 70 | 60 | 250% | Smooth/Fabric |
| Standard Length | 10 Mtr | 33 Ft | 11 Yard | |||
| Standard Width | 1.2/1.4/1.5/2 Mtr | 4/4.6/4.92/6.56 Ft | 1.33/1.53/1.64/2.18 Yard | |||
