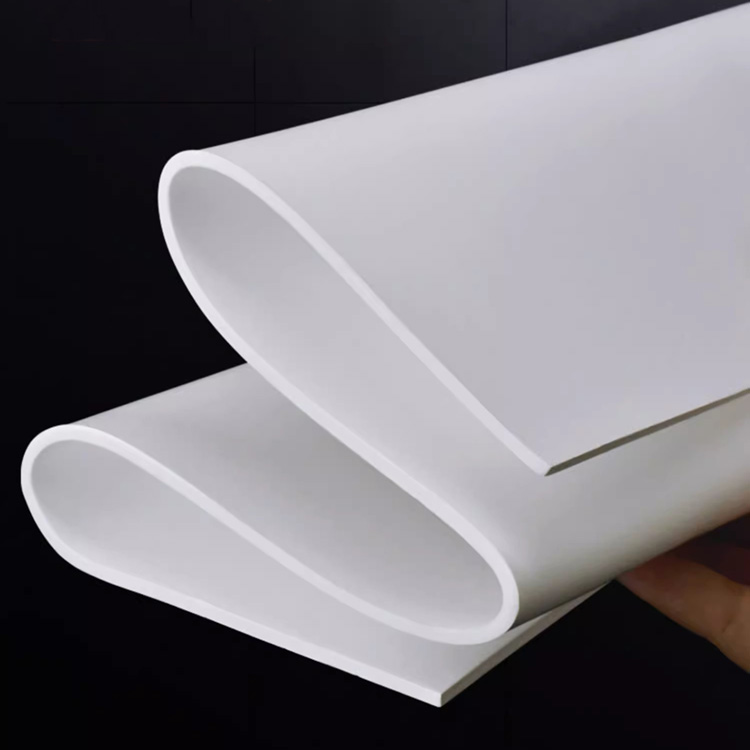

Expanded PTFE gasket sheet is made of 100% expanded PTFE by using special process that produces a uniform and highly fibrillated micro structure with a great lot of fibers running in multi-directional.

Expanded PTFE gasket sheet is a soft, form-in-place gasket material that conforms to almost any sealing surface. This material is often used to make gaskets, which is a common use because it has low bolt load requirements. It can also withstand compressive loads in excess of 40,000 psi without losing any sealing ability.

Expanded PTFE gasket sheet is capable of withstanding a wide range of pressure, temperature and chemical environments. Due to its highly fibrillated micro structure, it has excellent creep resistance compared with other PTFE products.

Introduce

Product Details

Application

1.Chemical industry

Expanded PTFE sheets can be used to manufacture various corrosion-resistant chemical equipment such as reactors, pipelines, pump bodies, sealing gaskets, membranes, valves, etc.

2.Pharmaceutical industry

Expanded PTFE sheets can be used to manufacture medical equipment, drug packaging, liquid medicine delivery pipelines, etc., and can also be used to manufacture high-temperature equipment such as high-temperature sterilizers.

Advantages

1.Good chemical stability

Expanded PTFE sheet has strong resistance to chemical corrosion. It can operate stably for a long time in corrosive media such as acid, alkali, and organic solvents.

2.Good anti-sticking property

The surface of expanded PTFE sheet is flat and smooth, with excellent anti-sticking property. It will not adhere under high temperature and high pressure, and is easy to clean and maintain.

3.Not afraid of high and low temperature

Expanded PTFE sheet has good mechanical toughness; even if the temperature drops to -196℃, it can maintain an elongation of 5%.

4.Easy to cut and install

It can be cut into any shape of gasket by mechanical stamping or manual cutting, making your work easier.

5.Suitable for sealing rough surfaces

Expanded PTFE gasket sheet has a unique conform ability to molding, and can produce a good sealing effect on rough or damaged flange surfaces without adding much pressure.

6.Good creep resistance and cold flow resistance

The unique high-density fiber structure gives it a strong creep resistance. Since it does not contain any adhesives and additives, its mechanical properties are very stable.

Equipment used

Sealing parts of flange connections of pipelines, valves, pumps, pressure vessels, heat exchangers, condensers, generators, air compressors, exhaust pipes, refrigerators, etc., especially suitable for sealing special flanges with complex geometric shapes, uneven flange surfaces, glass enamel, etc.

Contact us

Weiten Group is a company specializing in the production of sealing materials. At the same time, it is also an innovative enterprise that sells many new products. I believe that the expanded PTFE gaskets produced by Weiten Group will make people satisfied and bring convenience to people. Welcome to inquire!
