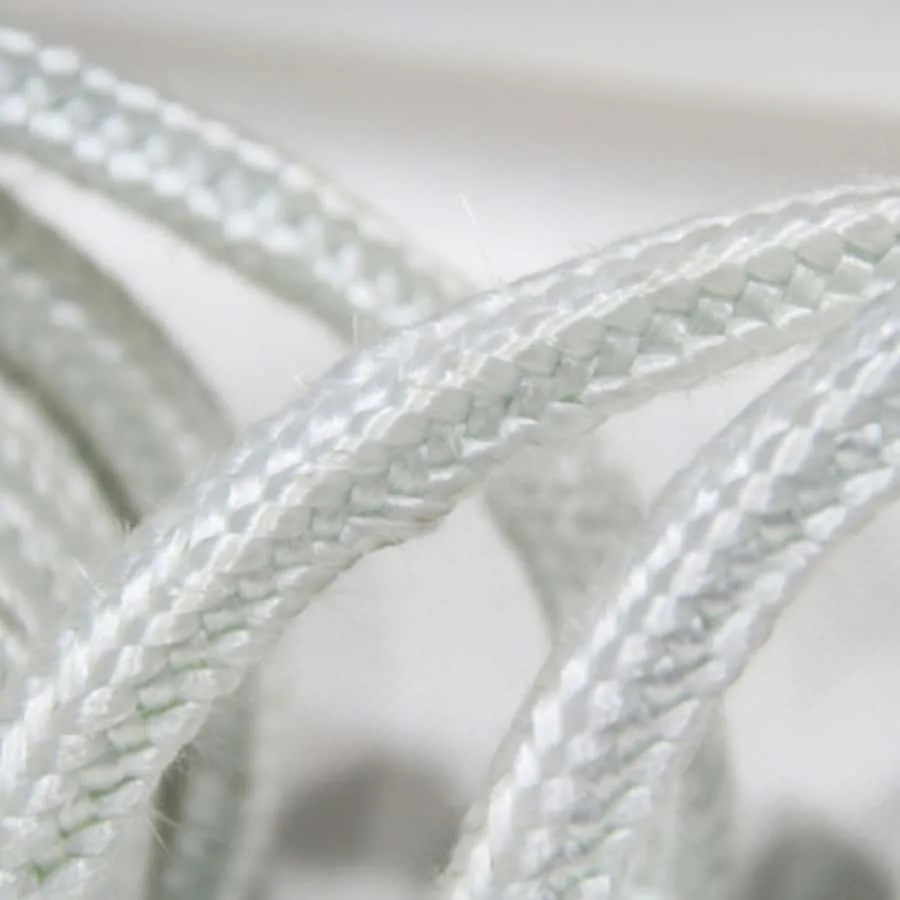

1. HIGH SILICA ROPE Comprised of 96% amorphous silica fibers, silica ropes are excellent for use as high-temperature resistant insulation where high strength and flexibility are required.
2. Silica Ropes can be surface modified upon request with knitted wire constructions to improve surface abrasion resistance and compression properties.
3. It has the standard H (Hydrocarbon) finish.
4. Application temperature up to 1,800°F (980°C).
· Furnace Door Gaskets
· Packings for Boilers
· Core for Tadpole Gaskets
· Seals for Casting Molds
· Packings for Electric Transformers
ltem | Unit | Twisted Rope | Braided Rope |
---|---|---|---|
Size | inch | 0.25-1.00 | 0.25-2.00 |
mm | 6-25 | 6-50 | |
Length p | feet | 100 | 20-825 |
Length per Spool | metres | 30 | 6-250 |
Thickness (mm) | 3-100 | ||
Fiber length | Continuous | ||
Specific gravity | 2.54 | ||
Moistureabsorbency (%) | 0.3 | ||
Silica, SiO | >96% |
