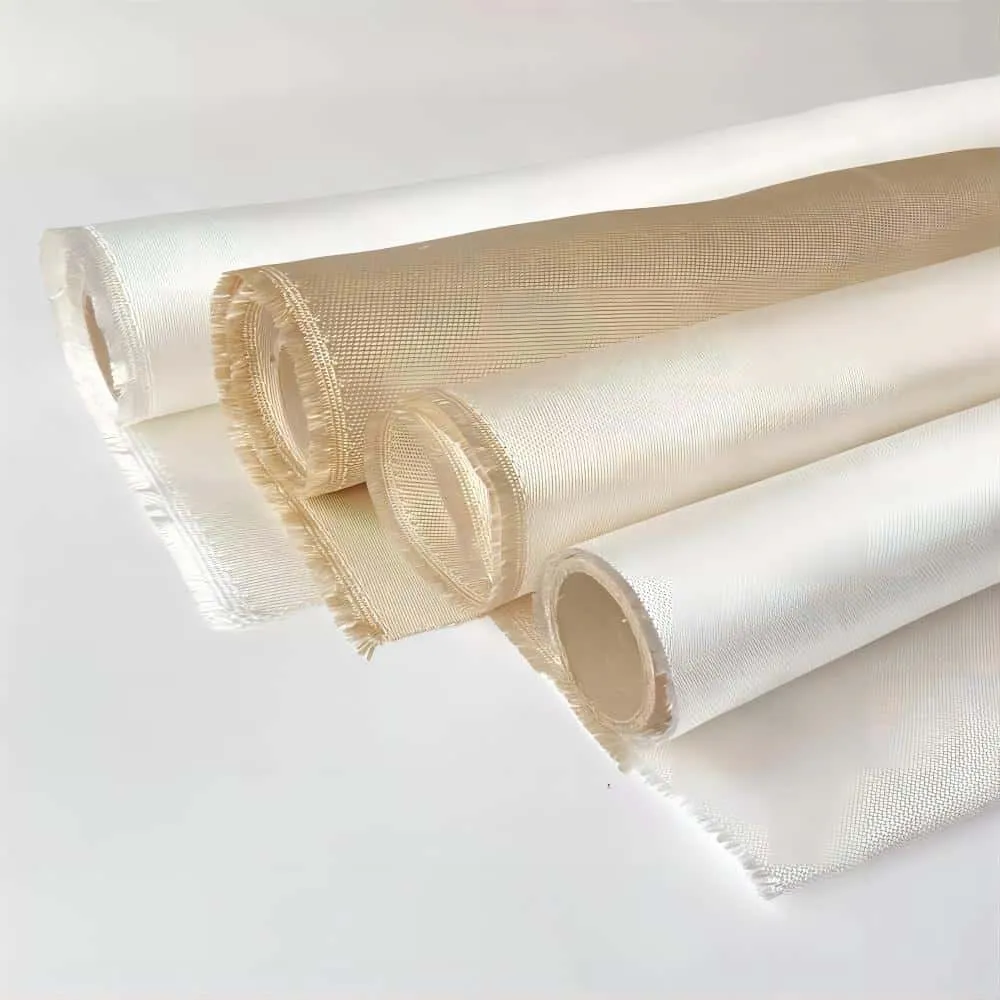

HIGH SILICA FABRIC Made with continuous filament, 96% amorphous silica fibers, TOP SEALING HIGH SILICA FABRIC are widely used for applications that require high heat resistance, as well as abrasion and/or chemical resistance. Available in a variety of weights ranging from 18 oz/sy to 70 oz/sy, TOP SEALING HIGH SILICA FABRIC are widely used for the safety of personnel and equipment, and as thermal barriers to reduce energy costs.
· Withstand continuous exposure to 1000°C
· Instant Heat Resistance:1400°C
· Resists most acids and alkalis
· Unaffected by bleaches and solvents
Product Details | ||||
---|---|---|---|---|
Property | Description | Style No. | ||
Silica 84 | Silica 86 | Silica 88 | ||
Weave Type | - | Stain | Stain | Stain |
Selvage | - | Woven | Woven | Woven |
Warp Counts | Ends/Inch | ≥50 | ≥18 | ≥18 |
Weft Counts | Ends/Inch | ≥35 | ≥13 | ≥13 |
Warp tensile strength | - | ≥ 150 Lb/Inch | ≥ 800 Nb/Inch | ≥ 800 Nb/Inch |
Weft tensile strength | - | ≥ 100 Lb/Inch | ≥ 600 Nb/Inch | ≥ 600 Nb/Inch |
Chemical Composition | SiO₂ | ≧96% | ||
Al2O3 | 3.5%±0.5 |
Technical Data | ||||
---|---|---|---|---|
Description\Style No. | Silica 84 | Silica 86 | Silica 88 | |
Weight | English | 18oz/y² | 30oz/y² | 33oz/y² |
Metric | 600g/m² | 1100g/m² | 1200g/m² | |
Thickness | English | 0.027inch | 0.047inch | 0.05inch |
Metric | 0.76mm | 1.20mm | 1.35mm | |
Width | English | 36inch | 36inch | 36inch |
Metric | 915mm | 915mm | 915mm | |
Temperature | English | 1000℃ | 1000℃ | 1000℃ |
Metric | 1832℉ | 1832℉ | 1832℉ | |
Coating | Silicon, Vermiculite, PU | |||
Color | Red, Yellow, White |
