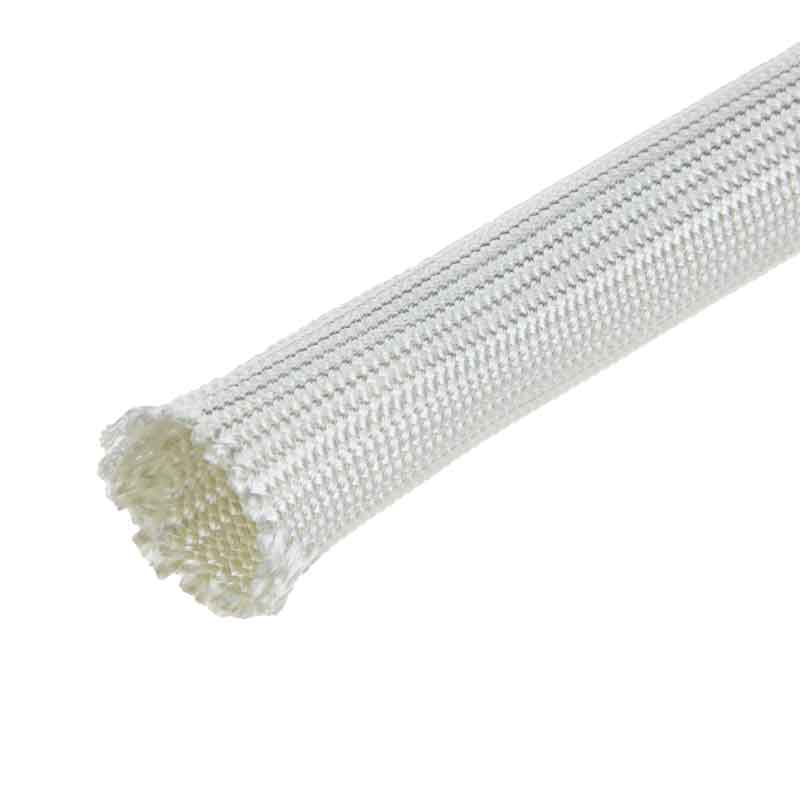

HIGH SILICA SLEEVE is primarily used as thermal protection of circular items. To improve handling properties during installation, the sleeving has the standard H (Hydrocarbon) finish. Severe abrasion applications will require other external protection measures. Application temperature up to 1,800°F (980°C).
· Protection of Water Cooling Hoses
· Protection of Hydraulic Hoses
· Protection of Electrical Cables
· Insulation of Exhaust Systems
· Special Circular Gasketing
Product Details | |
---|---|
ID | 5mm-120mm |
Thickness | 0.7mm-3.0mm |
Nominal | Wall |
Size | Thickness |
6.4mm | 1.5mm |
1/4" | 0.060" |
12.7mm | 1.5mm |
1/2" | 0.060" |
25.4mm | 1.5mm |
1" | 0.060" |
38.1mm | 1.5mm |
1 1/2" | 0.060" |
50.8mm | 1.5mm |
2" | 0.060" |
76.2mm | 1.5mm |
3" | 0.060" |
101.6mm | 1.5mm |
4" | 0.060" |
152.4mm | 1.5mm |
6" | 0.060" |
